04 / 10 · Solutions
Infrastructure networks
Pressure pipe systems for water mains, city networks and project infrastructure: PE100 pipes in straight lengths and coils, U-PVC pressure pipes up to Ø 400 mm, compression fittings for drinking water and pressurised waste water, and PE fittings up to Ø 2000 mm.
- Product lines
- 7
7 product lines
PE100 pipe and fittings
Polyethylene pressure pipes in straight lengths and 100 m coils, with or without sockets.
- Diameter
- Ø 20–63 mm
- Length
- 6–12 m · 100 m
- Pressure class
- PN 6 · 10 · 16 · 20
- Standards
- ISO 4427-2 · EN 12201-2 · DIN 8074/8075

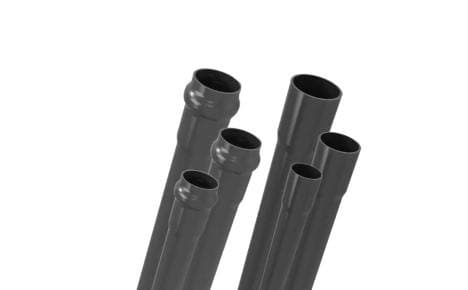

U-PVC pressure pipe
Pressure pipes up to Ø 400 mm, with socket, plain-end or O-ring joints.
- Diameter
- Ø 20–400 mm
- Length
- 6 m
- Pressure class
- PN 6 · 10 · 16
- Standards
- EN ISO 1452-2 · DIN 8061/8062 · ISO 4422
Compression fittings
For drinking water and pressurised waste water, above ground and underground.
- Diameter
- Ø 20–110 mm · ½″–4″
- Pressure class
- PN 10 · 16
- Standards
- DIN EN 12201 · ISO 11922-1 · DIN 8074

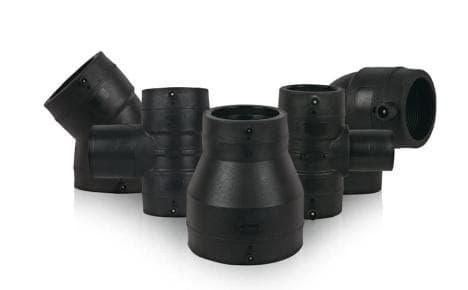

PE fittings
Injection-moulded, electrofusion and fabricated PE fittings and kits up to Ø 2000 mm.
- Diameter
- Ø 20–2000 mm
- Pressure class
- PN 10 · 16 · 20 · 25
- Standards
- EN 1555 · EN 12201 · ISO 4437

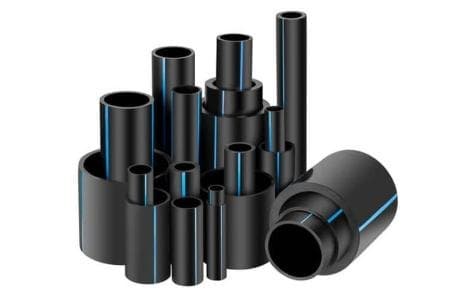

PE100 pipe
Polyethylene pressure pipe in lengths and 100 m coils.
- Diameter
- Ø 20–125 mm
- Length
- 6–12 m · 100 m
- Pressure class
- PN 10 · 16 · 20 · 25
- Standards
- EN 1555 · EN 12201 · ISO 4437
PE100
Polyethylene pressure pipe up to Ø 355 mm in SDR 9 and SDR 11.
- Diameter
- Ø 20–355 mm
- Length
- 6–12.5 m
- Wall series
- SDR 9 · 11
- Standards
- EN 12201-2 · ISO 4427:2019
Bänninger PE · PVC-U
PE and PVC-U pipe systems from Ø 8 to 1000 mm. AtlasPlast is the exclusive Bänninger agent for central and southern Iraq.
- Material
- PE · PVC-U
- Diameter
- Ø 8–1000 mm
Questions about Infrastructure networks
All questionsWhich pipes does AtlasPlast supply for water mains and city networks?
PE100 pressure pipes from Pimtaş, Turan Borfit and Georg Fischer; U-PVC pressure pipes from Pimtaş; Pimtaş compression fittings; injection-moulded, electrofusion and fabricated PE fittings from Turan Borfit; and Bänninger PE and PVC-U systems from Ø 8 to 1000 mm.
Read moreWhat is PE100 pipe?
PE100 is a high-density polyethylene grade with a minimum required strength of 10 MPa. It is flexible, corrosion-free and joined by butt or electrofusion welding, which makes it the usual choice for water mains, distribution networks and pressurised infrastructure.
Read moreWhat is the largest pipe diameter AtlasPlast can supply?
Turan Borfit PE fittings go up to Ø 2000 mm and Bänninger PE and PVC-U systems up to Ø 1000 mm. Pimtaş U-PVC pressure pipe reaches Ø 400 mm, Georg Fischer PE100 Ø 355 mm, and Turan Borfit butt welding machines weld PE and PP pipes up to Ø 1200 mm.
Read moreWhat are compression fittings used for?
Compression fittings join PE pipes mechanically, without welding. Pimtaş compression fittings are for drinking water and pressurised waste water, above and below ground, from Ø 20 to 110 mm (½″ to 4″) in PN 10 and PN 16.
Read moreWhich standards and pressure classes do the PE100 pipes meet?
Pimtaş PE100 is made to ISO 4427-2, EN 12201-2 and DIN 8074/8075 in PN 6 to PN 20. Turan Borfit PE100 meets EN 1555, EN 12201 and ISO 4437 in PN 10 to PN 25. Georg Fischer PE100 meets EN 12201-2 and ISO 4427:2019 in SDR 9 and SDR 11.
Read moreDoes AtlasPlast supply U-PVC pressure pipe?
Yes. Pimtaş U-PVC pressure pipes run from Ø 20 to 400 mm in 6 m lengths, in PN 6, PN 10 and PN 16, with socket, plain-end or O-ring joints, made to EN ISO 1452-2, DIN 8061/8062 and ISO 4422.
Read moreWhich Bänninger infrastructure systems does AtlasPlast supply?
Bänninger PE and PVC-U pipe systems from Ø 8 to 1000 mm. AtlasPlast is the exclusive Bänninger agent for central and southern Iraq and also supplies Bänninger PP-R and PP-RCT water supply pipes.
Read more
Need help choosing?
Our sales and technical teams advise on selection, quantities and delivery for projects of every size.
